FRP Moulded Grating Manufacturer
Time of Release : 2025-04-29
Direct from FRP Grating Factory
Factory Price | Free Samples | Custom Sizes | Fast Global Shipping
Why Choose Us
🏭 Factory Direct Supply – Competitive Pricing
🛡 ISO 9001 Certified – Guaranteed Quality
🌐 Exported to 30+ Countries – Reliable Logistics

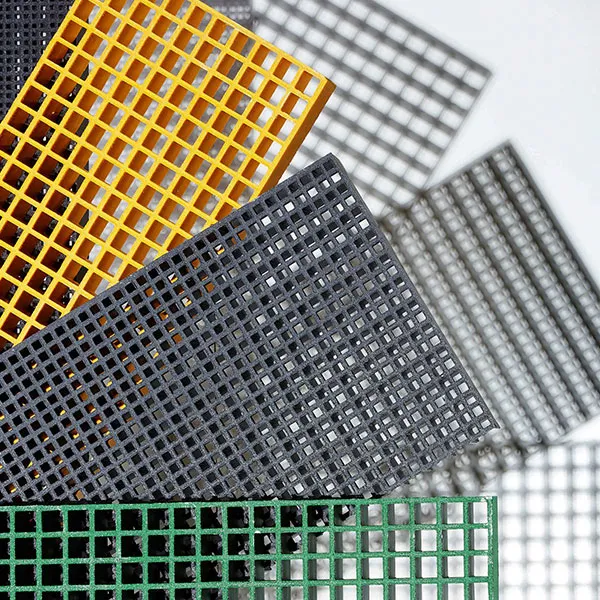

Hot-Selling Products
| Standard Panel Sizes | 1220 mm × 3660 mm (4 ft × 12 ft) 1220 mm × 4000 mm (4 ft × 13.1 ft) 915 mm × 3050 mm (3 ft × 10 ft) 1000 mm × 3000 mm (customizable) (Other sizes can be customized according to project needs) |
| Thickness Options | 25mm(1인치) 30 mm (1.2 inch) 38 mm (1.5 inch) — most common 50 mm (2 inch) |
| Mesh Size (Opening Size) | 38 mm × 38 mm (1.5 inch × 1.5 inch) — Standard 40 mm × 40 mm 19 mm × 19 mm (mini-mesh for small object passage prevention) |
| Load Bar Width and Spacing (for Pultruded Grating) | Load bar width: typically 25 mm, 38 mm, 50 mm Load bar spacing: 25 mm, 40 mm, 50 mm center-to-center |
| 표면 옵션 | Gritted surface (anti-slip) 부드러운 표면 Covered surface (solid top) |
| Colors Available | Yellow (most common) 녹색 Grey Red Customized colors upon request |
| Common Resin Types | Isophthalic Polyester (standard corrosion resistance) Vinyl Ester (high chemical resistance) Phenolic (fire-resistant applications) |

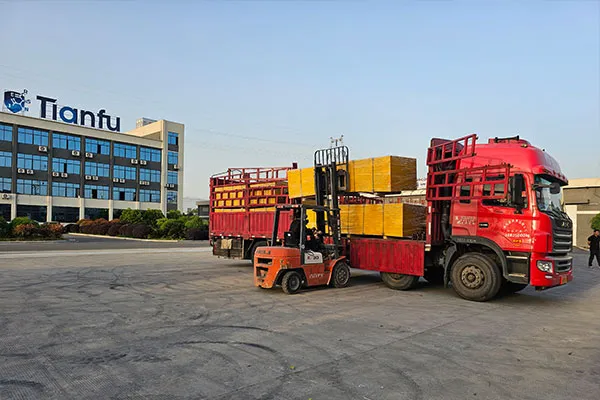

About the Factory
Anhui Tianfu New Material Co., Ltd is a leading professional manufacturer specializing in FRP moulded grating production. With over 20 years of experience in the composite materials industry, we are dedicated to delivering high-quality fiberglass reinforced plastic (FRP) solutions for a wide range of industrial and commercial applications. Our modern factory is equipped with advanced production lines, covering an area of more than 26,000 square meters. We offer a complete range of molded FRP gratings featuring superior strength, chemical resistance, fire retardancy, and anti-slip performance. At Tianfu New Material, we prioritize innovation, strict quality control, and customer satisfaction. Our products are certified to international standards and exported to over 30 countries worldwide, serving industries such as chemical plants, sewage treatment facilities, offshore platforms, and walkways. Whether you need standard sizes or customized solutions, Tianfu is your reliable partner for FRP moulded grating.

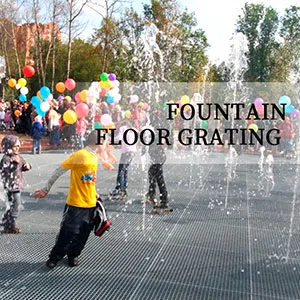

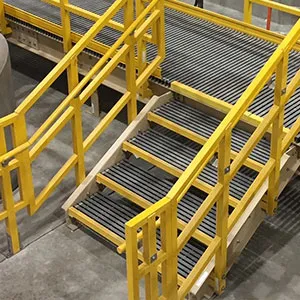

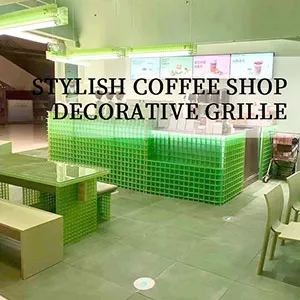

애플리케이션 시나리오
About the Factory
We are a professional FRP Grating manufacturer with 20+ years of experience. Our 26,000㎡ factory is ISO9001 certified, serving clients across 30+ countries with OEM/ODM capability. We provide customized solutions and fast delivery worldwide.
Our FRP gratings are manufactured in accordance with ISO 9001 standards and tested per ASTM E84 (Class 1 fire rating), ASTM D638/D790 for mechanical performance, and comply with BS 476 and EN 13706 standards. Third-party testing available through SGS and TUV upon request.
전시회
JEC WORLD 2023
JEC 월드 2024
CAMX 2025
SHANGHAI 2025
Certificate
Frequently Asked Questions (FAQ)
1. What is FRP grating made of?
FRP grating is made of fiberglass reinforcements combined with resin (typically Orthophthalic, Isophthalic, or Vinylester). It is molded or pultruded into a strong, lightweight, corrosion-resistant panel.
2. What’s the difference between molded and pultruded grating?
- 성형 FRP 그레이팅: Has bidirectional strength, better for corrosive environments and heavy loading in both directions.
- Pultruded FRP 격자판: Higher fiber content, stronger in the longitudinal direction, ideal for long-span applications.
3. What sizes and thicknesses are available?
We offer various panel sizes such as:
- 1220×3660 mm, 1000×4000 mm, 1220×4000 mm
- Thickness: 25 mm, 30 mm, 38 mm, 50 mm We also support custom size cutting to match your platform or trench dimensions.
4. Can I customize the color or surface finish?
Yes. Common colors include grey, green, yellow, red, and black.
Surface options:
- Concave top (standard)
- Grit surface (anti-slip)
- Covered top (solid surface)
5. What type of resin should I choose?
Depends on the application environment:
- Ortho Resin: Economical, general use
- Iso Resin: Better corrosion resistance
- Vinylester Resin: For extreme chemicals or fire resistance
- 페놀수지: High fire performance (e.g. oil & gas)
6. Do you provide samples for testing?
Yes, free samples are available upon request. We can ship samples by express (DHL, FedEx, etc.) if you provide the courier account or pay the freight.
7. What’s the loading capacity of your grating?
Loading capacity depends on thickness and mesh size.
For example:
- 38×38×38 mm panel supports over 5 tons per m².
We can provide load test reports or technical data sheets (TDS) upon request.

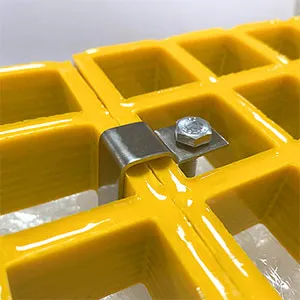

8. Do you offer installation accessories?
Yes, we offer:
- M Clips
- C Clips
- L Clips
- Stainless steel fasteners
Also, cutting and sealing kits are available for safe on-site modifications.
9. What is your MOQ (Minimum Order Quantity)?
Our regular MOQ is 50 m² per size.
However, we can support trial orders or mixed sizes for new customers.
10. How long is the lead time?
- Standard items: 5–7 working days
- Custom specifications or large orders: 10–15 days
We maintain stock for fast delivery on popular sizes.
11. Can you export to my country?
Yes! We export to 30+ countries including the USA, Canada, Australia, UAE, Vietnam, Chile, etc.
We support shipping by sea, air, or express depending on your need.
12. What are your payment terms?
Standard terms:
- T/T 30% deposit, 70% before shipment
- L/C at sight for large orders
- Alibaba Trade Assurance is also accepted
13. Do you provide a warranty?
Yes. Our FRP grating comes with a 5–10 year performance warranty depending on resin type and use condition.
14. Can you do OEM with my logo or packing?
Yes, we provide OEM/ODM services including:
- Logo printing on grating
- Custom labels
- Neutral or branded packaging
15. What documents do you provide with the shipment?
We provide:
- Commercial Invoice
- Packing List
- Bill of Lading / Airway Bill
- Certificate of Origin
- Quality Certificate or Test Report
- TDS/MSDS (if required)
Other Products

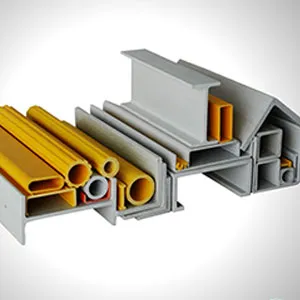

FRP 인발 프로파일

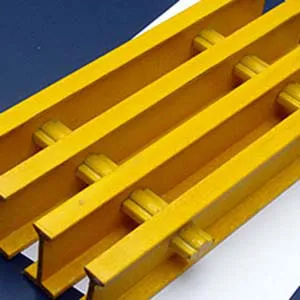

FRP pultruded grating
FRP handrail system
FRP grating clips
